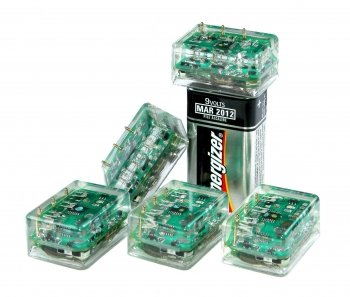

Pegasus™ 7 Synchro Red Training Model is a synchronized visible red signaling beacon used during training operations in place of the Pegasus™ 7 Synchro IR-35 (NSN: 5855-01-540-1898) infrared signaling beacon. The Red Training Model can be seen with or without night vision.
With several beacons deployed, synchronized flash patterns are recognized by operators and commanders in less than half the time as traditionally coded beacons. Faster squad recognition along with a dramatically reduced incidence of confusion with small arms fire extends this beacons capabilities well beyond that of traditional programmable beacons.
The Pegasus 7 has the capability to store two user-selectable flash patterns in memory. The first code pattern is a fixed flash rate code identical to the Phoenix Jr. (NSN: 5855-01-438-4588). The second code pattern is user programmed. The operator can easily switch between each of the encoded flash patterns or a standby mode via the beacons programming pins. The standby mode allows the beacon to put in a sleep setting where no flash pattern is broadcast allowing it to be switched from standby to ON without disconnecting the battery. The beacons non-volatile memory allows the battery to be removed from the beacon without erasing any of the entered codes.
Features
